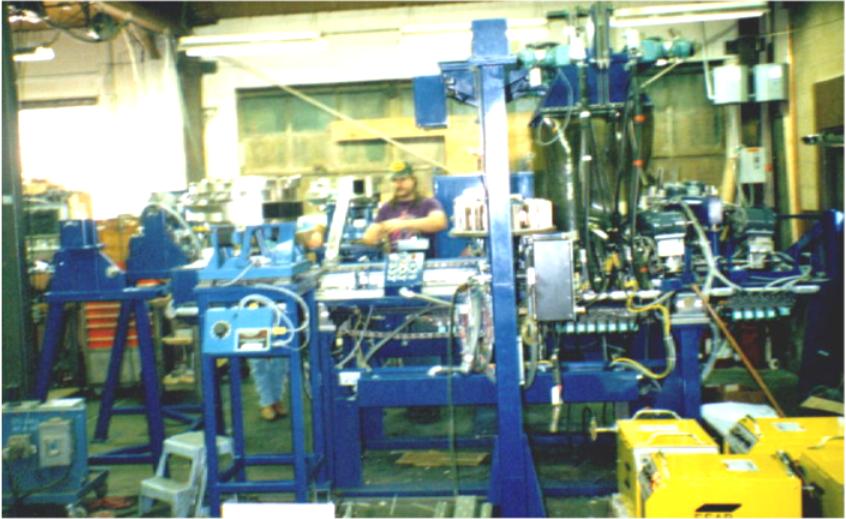

Stainless steel freezer belt assembly and welding machine

Machine automatically compresses wire mesh on the support rods, assembles the tension links onto the rods, assembles the side plates onto the rods and positions each rod and link assembly before automatically welding freezer belt. This stainless steel belt for the food service industry is used in Frigoscandia conveyors. Average freezer belt length is 1000 ft. to over 5000 ft. in length and requires 32 welds per foot.

Key Benefits:

Combination of bowl feeders, parts magazines and coil handler assist machine operator.
PLC controls all machine and digital welder functions.
Each of (4) weld heads have automatic three axis position capabilities.

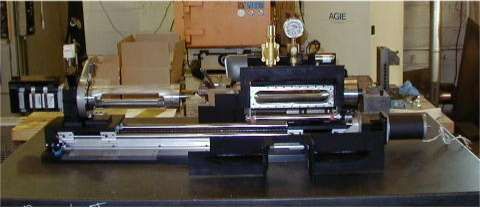

Laser Welding Vacuum Chamber with CNC Positioning

Tour our web site for more information and examples of drilling, tapping and milling machines, boring machines, welding machines, assembly machines, robots, conveyors, plastic injection, diecasting dies, molds, slides, spindles, components and more

Some current installations include:

Briggs & Stratton-12 STATION ROTARY TRANSFER MACHINING AND TESTING MACHINE

Torrington Bearing-8 STATION ROTARY TRANSFER MACHINING CENTER

Airtex Products-12 STATION ROTARY TRANSFER ASSEMBLY AND TESTING MACHINE

Intermet Foundries-HIGH VOLUME MULTI-SPINDLE DRILLING, MILLING AND BORING MACHINES

Boeing-PROCESS AND PRODUCTION CAPABILITIES STUDIES

U.S Air Force-SUPPLIER CAPABILITIES AND QUALITY ANALYSIS

Patented Material Handling System-MAJOR COMPUTER COMPONENT MANUFACTURER

Class1 Division1 Explosion Proof Machinery & Controls -PLASTICS INDUSTRY
