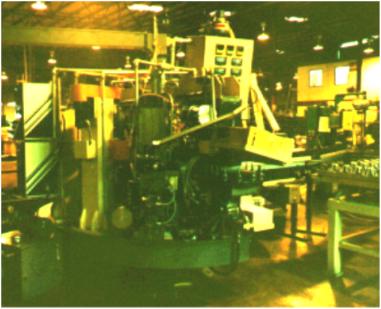

Automatic 12 station water pump assembly machine

This automatic assembly machine for the Ford 4.6 liter V8 water pump presses the bearing assembly into its aluminum housing, injects plastic around the bearing housing, presses on the fan hub, presses on the impeller and installs the seal. In process testing includes a leak test, a rotational torque test, an impeller to housing clearance measurement along with monitoring all press fits with strain gauges.

Key Benefits:

In process inspection
Automatic parts handling
Press fits with plastic injection assembly

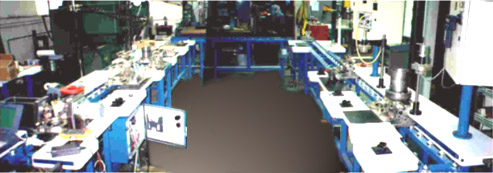

Special Design Assembly Stations With Manual Conveyor

Tour our web site for more information and examples of drilling, tapping and milling machines, boring machines, welding machines, assembly machines, robots, conveyors, plastic injection, diecasting dies, molds, slides, spindles, components and more

Some current installations include:

Briggs & Stratton-12 STATION ROTARY TRANSFER MACHINING AND TESTING MACHINE

Torrington Bearing-8 STATION ROTARY TRANSFER MACHINING CENTER

Airtex Products-12 STATION ROTARY TRANSFER ASSEMBLY AND TESTING MACHINE

Intermet Foundries-HIGH VOLUME MULTI-SPINDLE DRILLING, MILLING AND BORING MACHINES

Boeing-PROCESS AND PRODUCTION CAPABILITIES STUDIES

U.S Air Force-SUPPLIER CAPABILITIES AND QUALITY ANALYSIS

Patented Material Handling System-MAJOR COMPUTER COMPONENT MANUFACTURER

Class1 Division1 Explosion Proof Machinery & Controls -PLASTICS INDUSTRY

FABRICATION, MANUFACTURE & INSTALLATION
85 N. Central Drive
O'Fallon, MO 63366

CONTACT ME FOR A QUICK, NO OBLIGATION ANALYSIS OF YOUR REQUIREMENTS.
